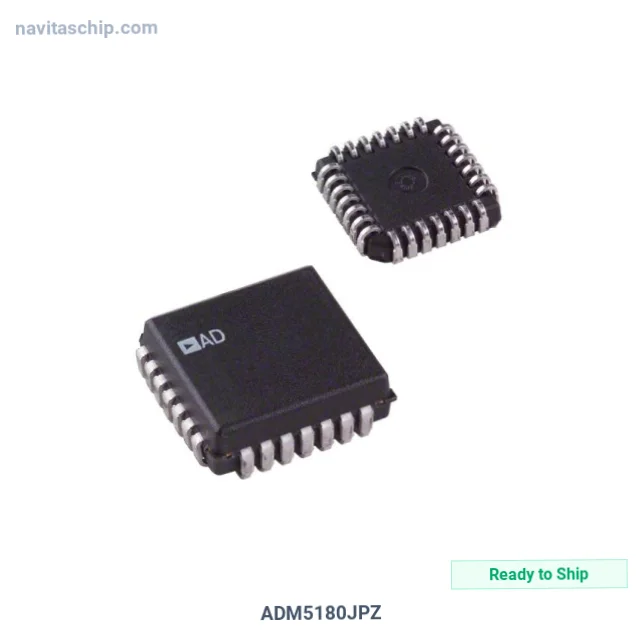

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADM5180JPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11538400 |
| Description | IC TXRX RS232/423 OCTAL 28PLCC |
| Spec | 28-LCC (J-Lead) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | RS232, RS423 |
| Number of Drivers/Receivers | 8/8 |
| Voltage - Supply | 4.75V ~ 5.25V |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADM5180JPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADM5180JPZ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver RS-232/423 Octal 28plcc, housed in a compact 28-PLCC (11.51x11.51) package, with 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Mounting: Surface Mount
- Package: 28-LCC (J-Lead)
- Device Package: 28-PLCC (11.51x11.51)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
