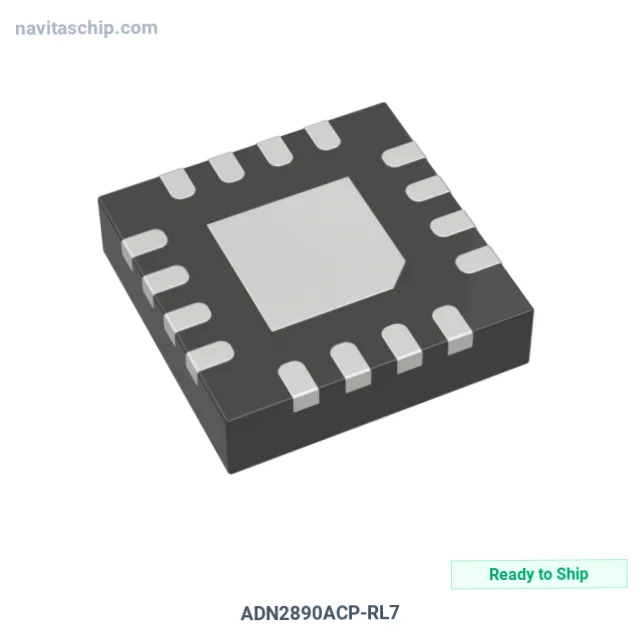

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADN2890ACP-RL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-725721 |
| Description | IC AMP LIM 16LFCSP |
| Spec | 16-WFQFN Exposed Pad, CSP |
| Package | Cut Tape (CT) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Cut Tape (CT) |
| Product Status | Obsolete |
| Amplifier Type | Limiting |
| Number of Circuits | 1 |
| Output Type | Differential |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 39mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADN2890ACP-RL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADN2890ACP-RL7 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Amplifier Lim in 16-Pin Csp Package, housed in a compact 16-LFCSP-WQ (3x3) package.
In today's market, precision op amp EOL and obsolescence disrupting analog signal chain continuity can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-WFQFN Exposed Pad, CSP
- Device Package: 16-LFCSP-WQ (3x3)
Applications
Ideal solution for:
- general-purpose operational amplifier for analog signal buffering, amplification and conditioning
- JFET-input and FET-input op amp for high input impedance and low bias current photometry stages
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- current sense amplifier for high-side and bidirectional battery and motor current monitoring
- analog signal chain buffer between sensor front-ends and downstream ADC inputs for data acquisition
Why Choose NavitasChip for ADN2890ACP-RL7?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the ADN2890ACP-RL7 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Cut Tape (CT) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for ADN2890ACP-RL7 with regional warehouse support.
ADN2890ACP-RL7 - Get instant quote online.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
