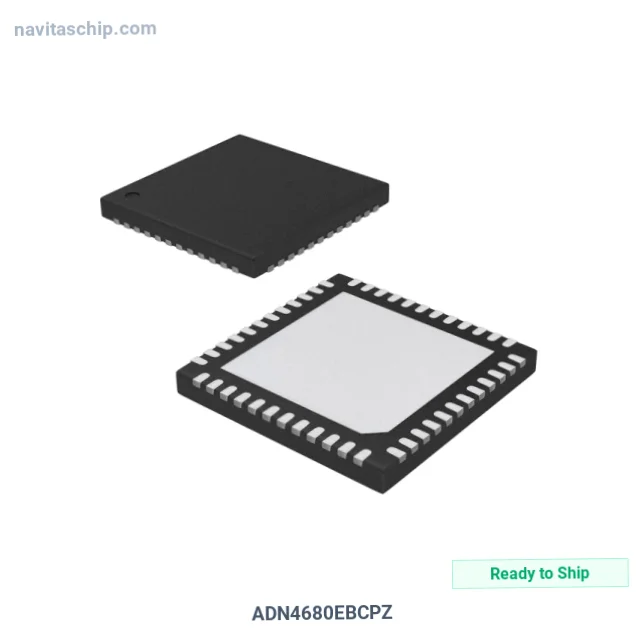

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADN4680EBCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-15672070 |
| Description | IC TRANSCEIVER HALF 4/4 48LFCSP |
| Spec | 48-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Transceiver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 4/4 |
| Duplex | Half |
| Receiver Hysteresis | 15 mV |
| Data Rate | 250Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LFCSP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADN4680EBCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADN4680EBCPZ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver Half 4/4 in 48-Pin Csp Package, housed in a compact 48-LFCSP (7x7) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 48-WFQFN Exposed Pad, CSP
- Device Package: 48-LFCSP (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
