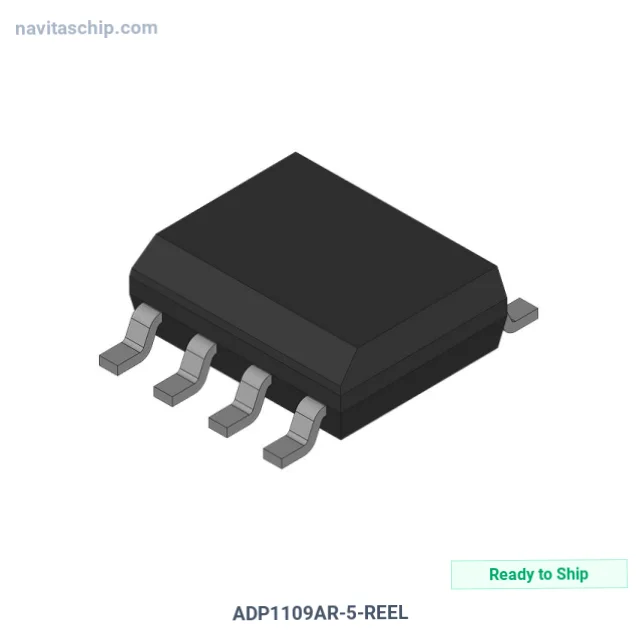

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADP1109AR-5-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12114122 |
| Description | IC REG BOOST 5V 1.2A 8SOIC |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 9V |
| Voltage - Output (Min/Fixed) | 5V |
| Current - Output | 1.2A (Switch) |
| Frequency - Switching | 120kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADP1109AR-5-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADP1109AR-5-REEL is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc. (ADI). Integrated Circuit Regulator Boost 5V Supply 1.2a in 8-Pin SOIC Package, housed in a compact 8-SOIC package. Tape and Reel packaging available.
In today's market, challenging Target Price (TP) requirements can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
Applications
Engineered specifically for:
- flyback isolated DC-DC conversion for off-line power
- high switching frequency enabling compact inductor and capacitor sizing
- fast load transient response for digital core power rails
Why Choose NavitasChip for ADP1109AR-5-REEL?
NavitasChip offers cost-effective alternative to authorized distributors for the ADP1109AR-5-REEL and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer ADP1109AR-5-REEL with flexible routing options.
ADP1109AR-5-REEL - Contact our sales team.
