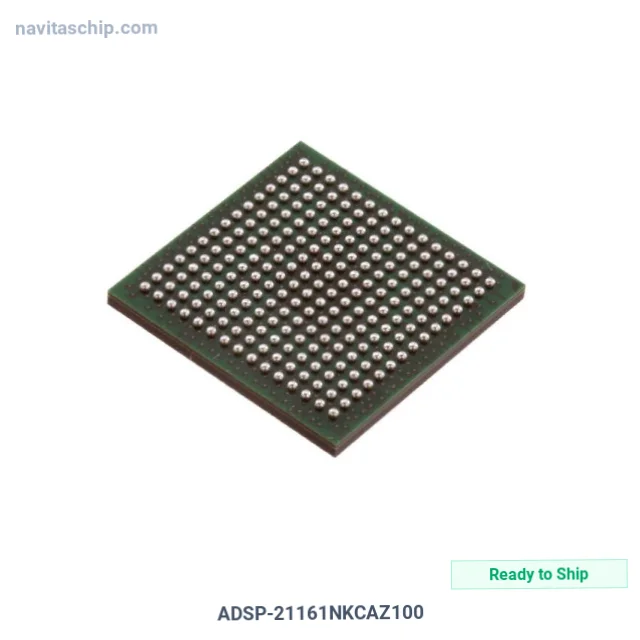

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-21161NKCAZ100 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-624451 |
| Description | IC DSP CONTROLLER 32BIT 225MBGA |
| Spec | 255-BGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Floating Point |
| Interface | Host Interface, Link Port, Serial Port |
| Clock Rate | 100MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 128kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.80V |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 255-CSPBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-21161NKCAZ100 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-21161NKCAZ100 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor Controller 32bit in 225-Pin BGA Package, housed in a compact 255-CSPBGA (17x17) package.
In today's market, supply gaps during signal processing product lifecycle ramps can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Interface: Host Interface, Link Port, Serial Port
- Operating Temperature: 0°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 255-BGA, CSPBGA
- Device Package: 255-CSPBGA (17x17)
- RoHS Compliant
Applications
Ideal solution for:
- IoT devices
- motor control and power conversion
- image and video processing
- speech recognition and audio analytics
Why Choose NavitasChip for ADSP-21161NKCAZ100?
NavitasChip offers cost-saving procurement for the ADSP-21161NKCAZ100 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for ADSP-21161NKCAZ100 with distribution hubs in Hong Kong, Singapore, and Shenzhen.
ADSP-21161NKCAZ100 - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
