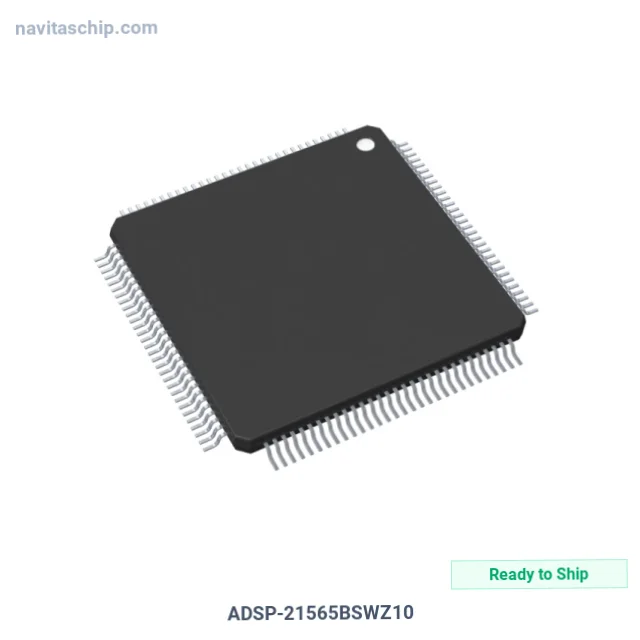

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-21565BSWZ10 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-15293451 |
| Description | 1000 MHZ SHARC IN AN LQFP PACKAG |
| Spec | 120-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Type | Fixed/Floating Point |
| Interface | DDR3, DDR3L, I2C, Link Port, QSPI, SPDIF, SPI, SPORT, UART/USART |
| Clock Rate | 1GHz |
| Non-Volatile Memory | OTP (896B) |
| On-Chip RAM | 1.625MB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.00V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 120-LQFP-EP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-21565BSWZ10 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-21565BSWZ10 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). operating at 1000MHz Sharc in an LQFP Packag, housed in a compact 120-LQFP-EP (14x14) package.
Key Technical Specifications
- Interface: DDR3, DDR3L, I2C, Link Port, QSPI, SPDIF, SPI, SPORT, UART/USART
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 120-LQFP Exposed Pad
- Device Package: 120-LQFP-EP (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
