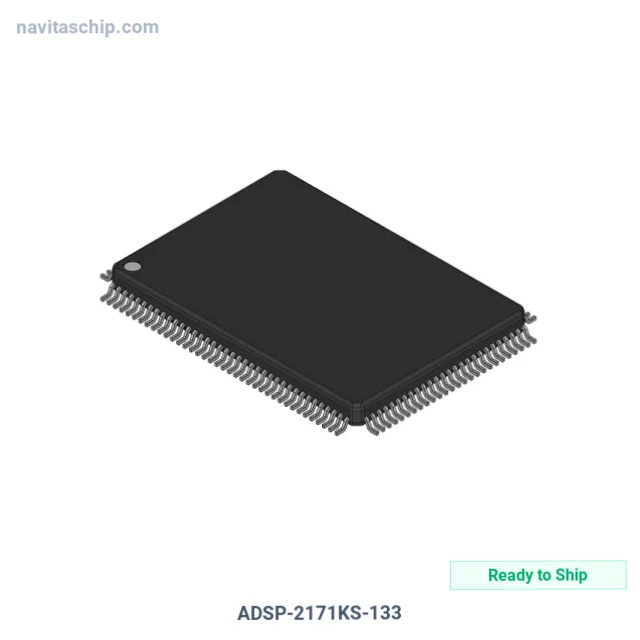

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-2171KS-133 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12100315 |
| Description | 16-BIT DIGITAL SIGNAL PROCESSOR |
| Spec | 128-BQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | Fixed Point |
| Interface | Host Interface, Serial Port |
| Clock Rate | 33.33MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 10kB |
| Voltage - I/O | 5.00V |
| Voltage - Core | 5.00V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 128-PQFP (28x28) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-2171KS-133 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-2171KS-133 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). 16-Bit Digital Signal Processor, housed in a compact 128-PQFP (28x28) package.
Key Technical Specifications
- Interface: Host Interface, Serial Port
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 128-BQFP
- Device Package: 128-PQFP (28x28)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
