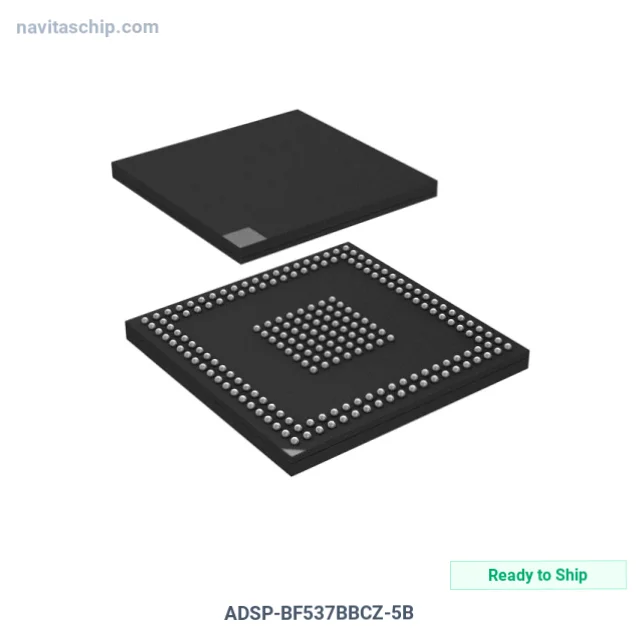

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-BF537BBCZ-5B |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1200168 |
| Description | IC DSP CTLR 16BIT 208CSBGA |
| Spec | 208-FBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Fixed Point |
| Interface | CAN, SPI, SSP, TWI, UART |
| Clock Rate | 500MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 132kB |
| Voltage - I/O | 2.50V, 3.30V |
| Voltage - Core | 1.26V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-CSPBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-BF537BBCZ-5B Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-BF537BBCZ-5B is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor Ctlr 16bit in 208-Pin BGA Package, housed in a compact 208-CSPBGA (17x17) package.
Key Technical Specifications
- Interface: CAN, SPI, SSP, TWI, UART
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 208-FBGA, CSPBGA
- Device Package: 208-CSPBGA (17x17)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
