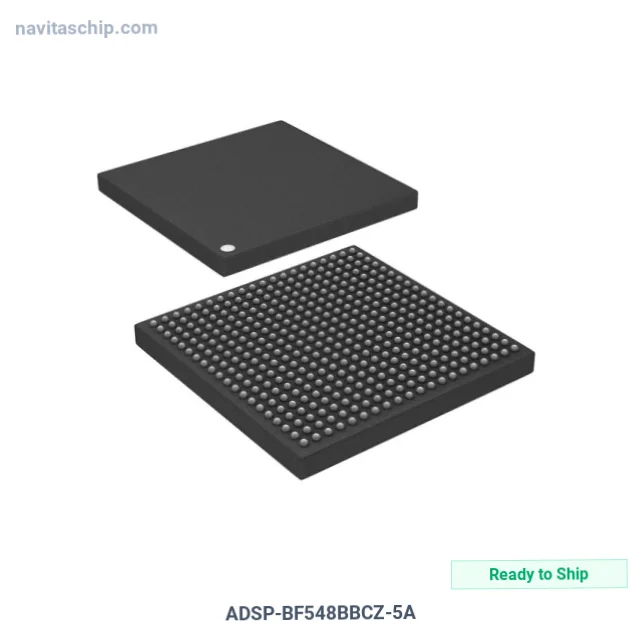

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADSP-BF548BBCZ-5A |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1972296 |
| Description | IC DSP 16BIT 533MHZ 400CSBGA |
| Spec | 400-LFBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Fixed Point |
| Interface | CAN, SPI, SSP, TWI, UART, USB |
| Clock Rate | 533MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 260kB |
| Voltage - I/O | 2.50V, 3.30V |
| Voltage - Core | 1.25V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 400-CSPBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADSP-BF548BBCZ-5A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADSP-BF548BBCZ-5A is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital Signal Processor 16bit operating at 533MHz in 400-Pin BGA Package, housed in a compact 400-CSPBGA (17x17) package.
Don't let annual BOM cost reduction pressure slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Interface: CAN, SPI, SSP, TWI, UART, USB
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 400-LFBGA, CSPBGA
- Device Package: 400-CSPBGA (17x17)
- RoHS Compliant
Applications
Widely adopted for:
- sensor signal conditioning and data acquisition
- wireless communications baseband processing
- edge AI inference and machine learning acceleration
Why Choose NavitasChip for ADSP-BF548BBCZ-5A?
NavitasChip offers cost-effective alternative to authorized distributors for the ADSP-BF548BBCZ-5A and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of ADSP-BF548BBCZ-5A for the Brazil and USA markets.
ADSP-BF548BBCZ-5A - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
