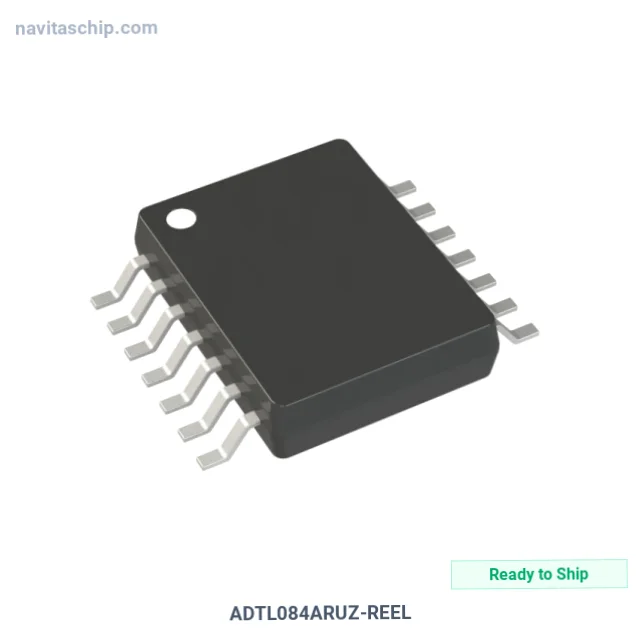

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADTL084ARUZ-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1556003 |
| Description | IC OPAMP JFET 4 CIRCUIT 14TSSOP |
| Spec | 14-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Slew Rate | 20V/µs |
| Gain Bandwidth Product | 5 MHz |
| Current - Input Bias | 2 pA |
| Voltage - Input Offset | 1.5 mV |
| Current - Supply | 1.2mA (x4 Channels) |
| Current - Output / Channel | 27 mA |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADTL084ARUZ-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADTL084ARUZ-REEL is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier JFET 4 Circuit in 14-Pin TSSOP Package, housed in a compact 14-TSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 14-TSSOP (0.173", 4.40mm Width)
- Device Package: 14-TSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
