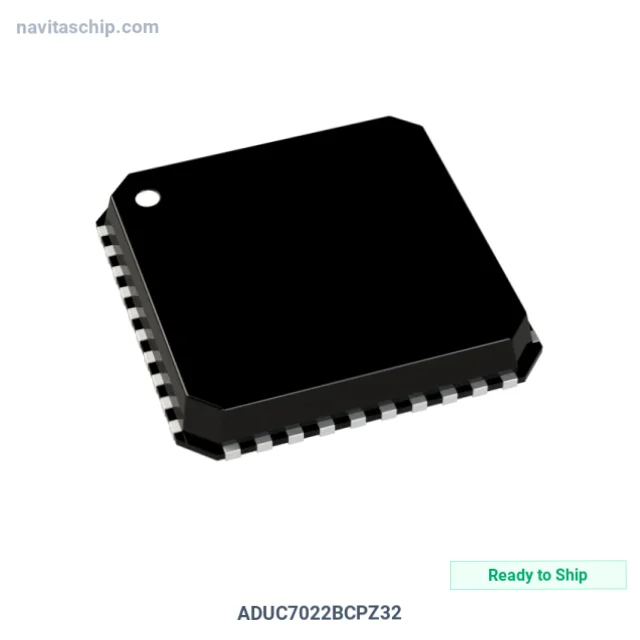

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADUC7022BCPZ32 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-957490 |
| Description | IC MCU 16/32B 32KB FLASH 40LFCSP |
| Spec | 40-VFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Analog Devices Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 44MHz |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | PLA, PWM, PSM, Temp Sensor, WDT |
| Number of I/O | 13 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 32 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADUC7022BCPZ32 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADUC7022BCPZ32 is a Microcontroller (MCU) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Microcontroller 16/32b 32kb Flash Memory in 40-Pin Csp Package, housed in a compact 40-LFCSP-VQ (6x6) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad, CSP
- Device Package: 40-LFCSP-VQ (6x6)
- RoHS Compliant
