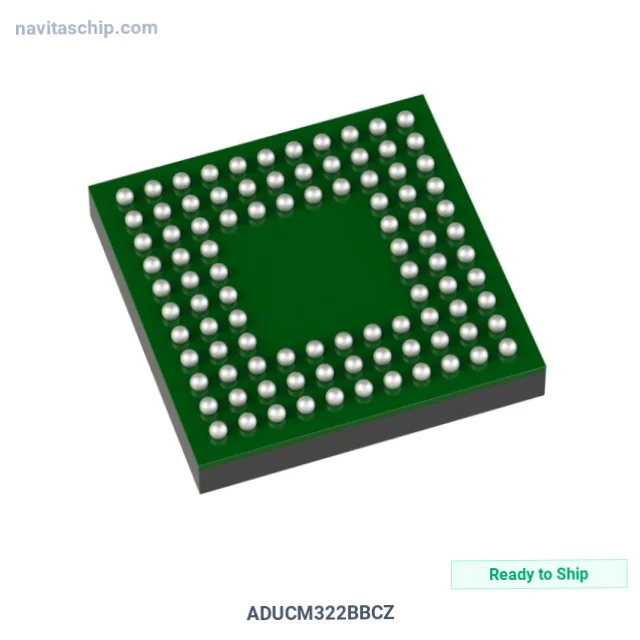

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADUCM322BBCZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-5993925 |
| Description | IC MCU 32BIT 256KB FLSH 96CSPBGA |
| Spec | 96-TFBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | I2C, MDIO, SPI |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.9V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 8x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 96-CSPBGA (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADUCM322BBCZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADUCM322BBCZ is a Microcontroller (MCU) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Microcontroller 32bit 256kb Flash in 96-Pin BGA Package, housed in a compact 96-CSPBGA (6x6) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TC)
- Mounting: Surface Mount
- Package: 96-TFBGA, CSPBGA
- Device Package: 96-CSPBGA (6x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
