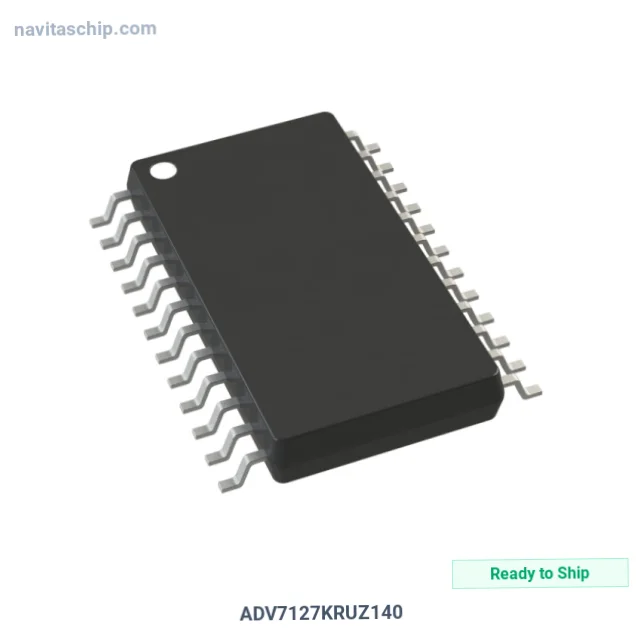

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADV7127KRUZ140 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-624672 |
| Description | IC DAC 10BIT A-OUT 24TSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V, 5V |
| INL/DNL (LSB) | ±0.5, ±0.25 |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 24-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADV7127KRUZ140 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADV7127KRUZ140 is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 10bit A-Out in 24-Pin TSSOP Package, housed in a compact 24-TSSOP package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width)
- Device Package: 24-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
