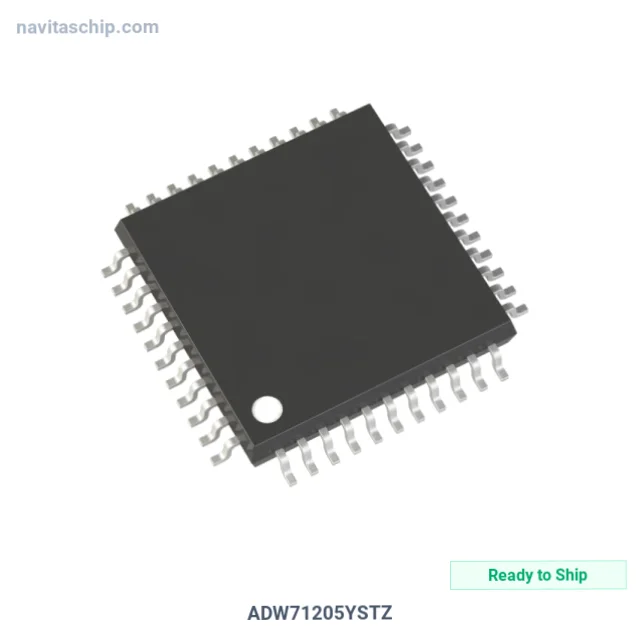

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADW71205YSTZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1644932 |
| Description | IC ADC RDC 12BIT 44LQFP |
| Spec | 44-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Channels | 2 |
| Resolution (Bits) | 12 b |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Supplier Device Package | 44-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADW71205YSTZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADW71205YSTZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter Rdc 12bit in 44-Pin LQFP Package, housed in a compact 44-LQFP (10x10) package, with 5V supply voltage.
Facing EOL audio codec and special-purpose ADC obsolescence disrupting production continuity? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 5V
- Channels: 2
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 44-LQFP
- Device Package: 44-LQFP (10x10)
- RoHS Compliant
Applications
Ideal solution for:
- embedded systems
- industrial automation
- multi-channel data acquisition for test and measurement instrumentation
- power and energy metering for smart grid and submetering applications
Why Choose NavitasChip for ADW71205YSTZ?
NavitasChip offers cost-saving procurement for the ADW71205YSTZ and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
ADW71205YSTZ sourced and shipped via our Asia-Pacific distribution network.
ADW71205YSTZ - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
