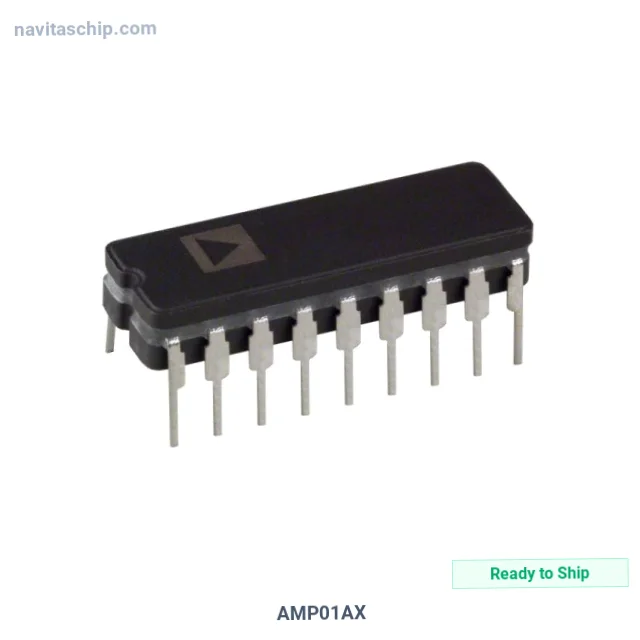

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AMP01AX |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-624772 |
| Description | IC INST AMP 1 CIRCUIT 18CERDIP |
| Spec | 18-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Slew Rate | 4.5V/µs |
| -3db Bandwidth | 570 kHz |
| Current - Input Bias | 1 nA |
| Voltage - Input Offset | 20 µV |
| Current - Supply | 3mA |
| Current - Output / Channel | 120 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 18-CERDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AMP01AX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AMP01AX is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Inst Amplifier 1 Circuit 18cerdip, housed in a compact 18-CERDIP package.
Facing vintage Burr-Brown OPA series legacy parts with original date code traceability for process control replacements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 18-CDIP (0.300", 7.62mm)
- Device Package: 18-CERDIP
- RoHS Compliant
Applications
Perfect for:
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- instrumentation amplifier with integrated gain resistors for differential bridge sensor readout
- CMOS op amp with sub-microampere quiescent current for always-on battery-powered applications
- high-voltage op amp rated 36 V to 60 V for industrial sensor front-ends and motor control
- rail-to-rail RRIO substitute for discontinued TLV9061, TLV2371, OPA340 and OPA350 single-supply parts
Why Choose NavitasChip for AMP01AX?
NavitasChip offers competitive market pricing for the AMP01AX and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
AMP01AX sourced and shipped via our Asia-Pacific distribution network.
AMP01AX - Check our competitive price now.
