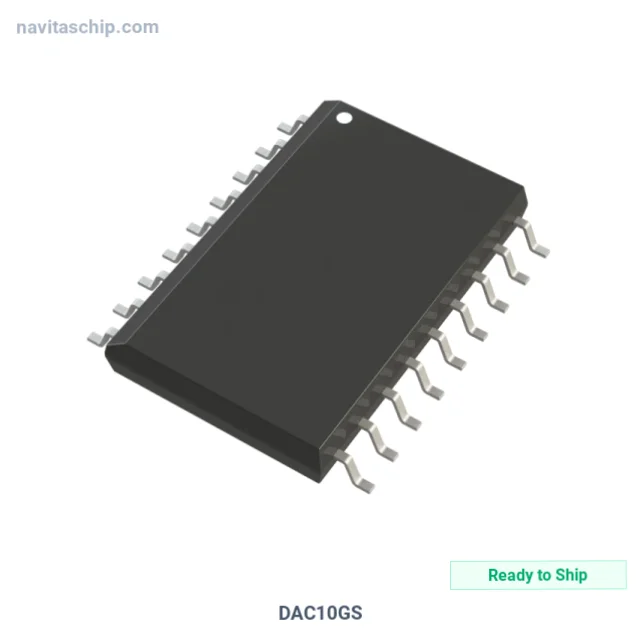

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC10GS |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-624800 |
| Description | IC DAC 10BIT A-OUT 18SOIC |
| Spec | 18-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 150ns |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±18V |
| Voltage - Supply, Digital | 9V ~ 36V |
| INL/DNL (LSB) | 0.6, 0.7 |
| Architecture | Multiplying DAC |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 18-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. DAC10GS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC10GS is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 10bit A-Out in 18-Pin SOIC Package, housed in a compact 18-SOIC package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 18-SOIC (0.295", 7.50mm Width)
- Device Package: 18-SOIC
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
