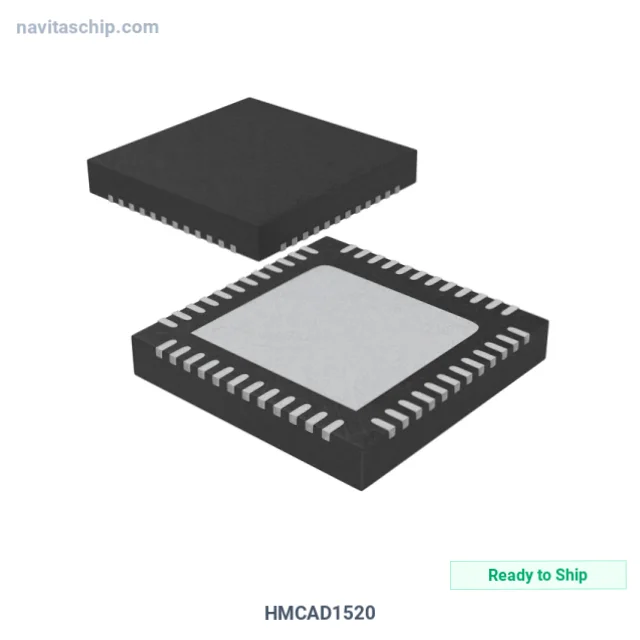

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HMCAD1520 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-5964368 |
| Description | IC ADC 8/12/14/16B PIPELND 48QFN |
| Spec | 48-VFQFN Exposed Pad |
| Package | Strip |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Strip |
| Product Status | Active |
| Number of Bits | 8, 12, 14, 16 |
| Sampling Rate (Per Second) | 500M, 560M, 660M, 1G |
| Number of Inputs | 1, 2, 4 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 4 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.7V ~ 2V |
| Voltage - Supply, Digital | 1.7V ~ 2V |
| Features | Interleavable, Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-QFN (7x7) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. HMCAD1520 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HMCAD1520 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 8/12/14/16b Pipelnd in 48-Pin QFN Package, housed in a compact 48-QFN (7x7) package.
