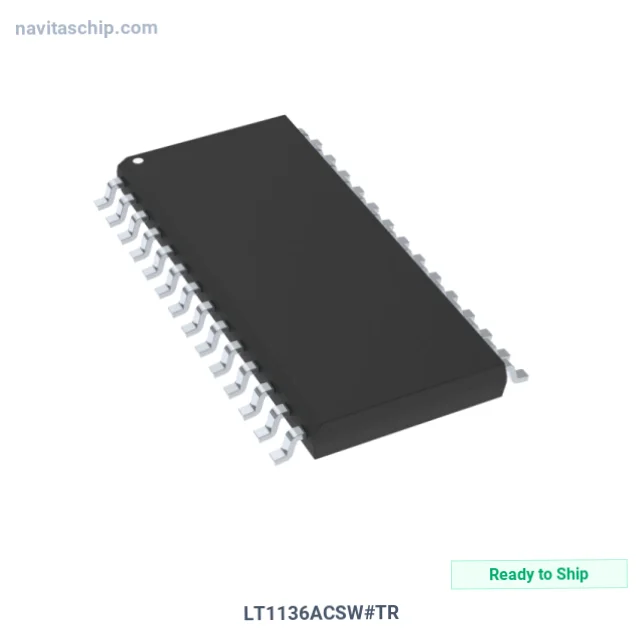

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1136ACSW#TR |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-694082 |
| Description | IC TXRX 5V RS232 LP CAPS 28SOIC |
| Spec | 28-SOIC (0.295", 7.50mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 4/5 |
| Duplex | Full |
| Receiver Hysteresis | 400 mV |
| Data Rate | 250KBd |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1136ACSW#TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1136ACSW#TR is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver 5V Supply RS-232 Low Power Caps in 28-Pin SOIC Package, housed in a compact 28-SOIC package, with 4.5V ~ 5.5V supply voltage. Originally developed by Linear Technology, this component continues to be fully supported. Supplied in Tape and Reel packaging for automated assembly.
Struggling with interface transceiver EOL and obsolescence disrupting fielded automation? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 28-SOIC (0.295", 7.50mm Width)
- Device Package: 28-SOIC
- RoHS Compliant
Applications
Widely adopted for:
- IoT devices
- consumer electronics
- smart grid metering and substation communication
- RS-485 multipoint differential transceivers for harsh environments
- isolated transceivers for safety-critical industrial communication
Why Choose NavitasChip for LT1136ACSW#TR?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the LT1136ACSW#TR and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for LT1136ACSW#TR, serving customers in New Zealand, Australia, and worldwide.
LT1136ACSW#TR - Upload your BOM for fast pricing.
