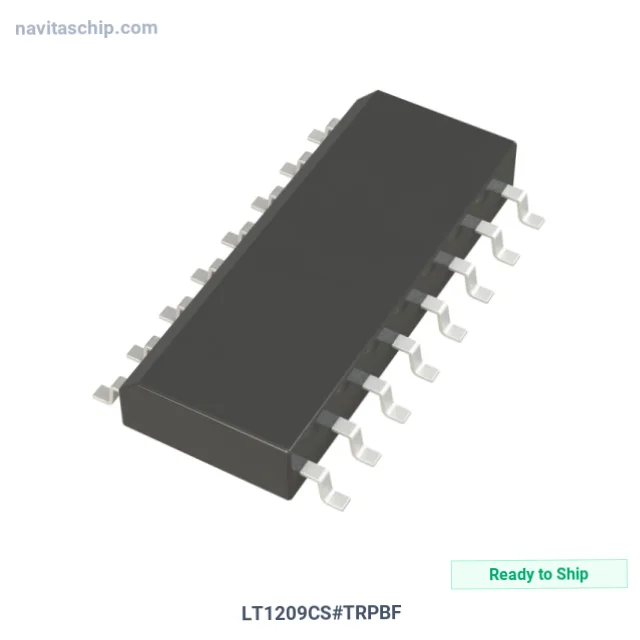

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1209CS#TRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-960228 |
| Description | IC OPAMP GP 4 CIRCUIT 16SO |
| Spec | 16-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Slew Rate | 400V/µs |
| Gain Bandwidth Product | 45 MHz |
| Current - Input Bias | 4 µA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 7mA (x4 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1209CS#TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1209CS#TRPBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Gp 4 Circuit 16so, housed in a compact 16-SO package. Originally developed by Linear Technology, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Struggling with high-voltage 36V, 50V and 60V industrial op amp supply gaps as semiconductor industry shifts to low-voltage RRIO designs? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 16-SOIC (0.154", 3.90mm Width)
- Device Package: 16-SO
- RoHS Compliant
Applications
Widely adopted for:
- general-purpose operational amplifier for analog signal buffering, amplification and conditioning
- pin-compatible drop-in replacement for legacy LM358, LM324, LM2902 and LM833 industrial workhorse op amps
- JFET-input op amp alternative for Analog Devices AD8642, AD8625 and AD795 low-bias-current designs
- high-side and low-side current sensing for lithium battery packs, BMS and brushless motor phase monitoring
- analog signal chain buffer between sensor front-ends and downstream ADC inputs for data acquisition
Why Choose NavitasChip for LT1209CS#TRPBF?
NavitasChip offers cost-effective alternative to authorized distributors for the LT1209CS#TRPBF and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
LT1209CS#TRPBF sourced and shipped via our Asia-Pacific distribution network.
LT1209CS#TRPBF - Request a quote today.
