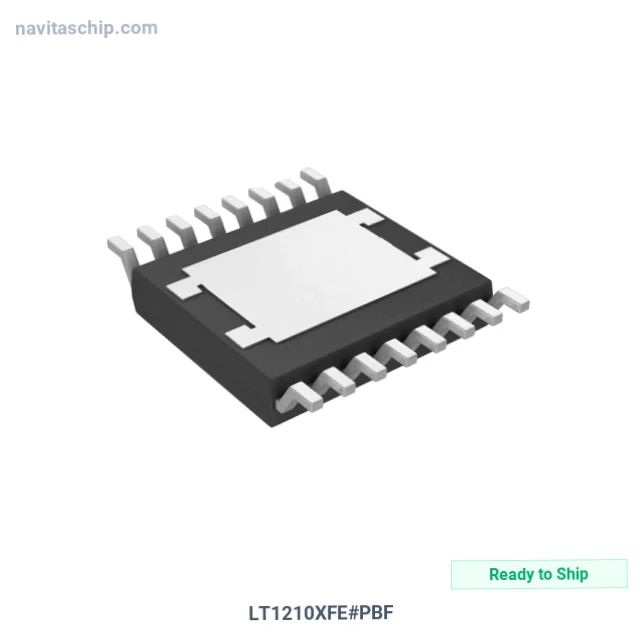

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1210XFE#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-7431450 |
| Description | IC OPAMP CFA 1 CIRCUIT 16TSSOP |
| Spec | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Current Feedback |
| Number of Circuits | 1 |
| Slew Rate | 900V/µs |
| -3db Bandwidth | 35 MHz |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 35mA |
| Current - Output / Channel | 2 A |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -40°C ~ 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP-EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1210XFE#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1210XFE#PBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Cfa 1 Circuit in 16-Pin TSSOP Package, housed in a compact 16-TSSOP-EP package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: -40°C ~ 175°C
- Mounting: Surface Mount
- Package: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Device Package: 16-TSSOP-EP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
