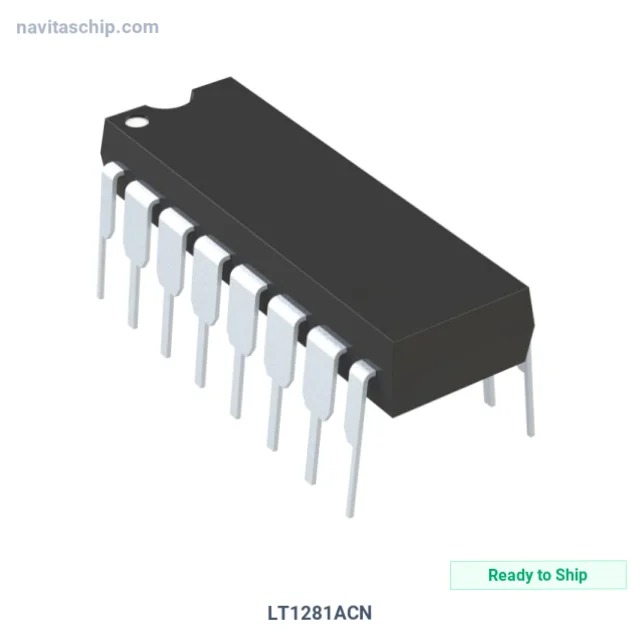

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1281ACN |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-240274 |
| Description | IC DRVR/RCVR 5V RS232 DUAL 16DIP |
| Spec | 16-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 400 mV |
| Data Rate | 250KBd |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1281ACN Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1281ACN is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Driver/rcvr 5V Supply RS-232 Dual in 16-Pin DIP Package, housed in a compact 16-PDIP package, with 4.5V ~ 5.5V supply voltage. Originally developed by Linear Technology.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 16-DIP (0.300", 7.62mm)
- Device Package: 16-PDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
