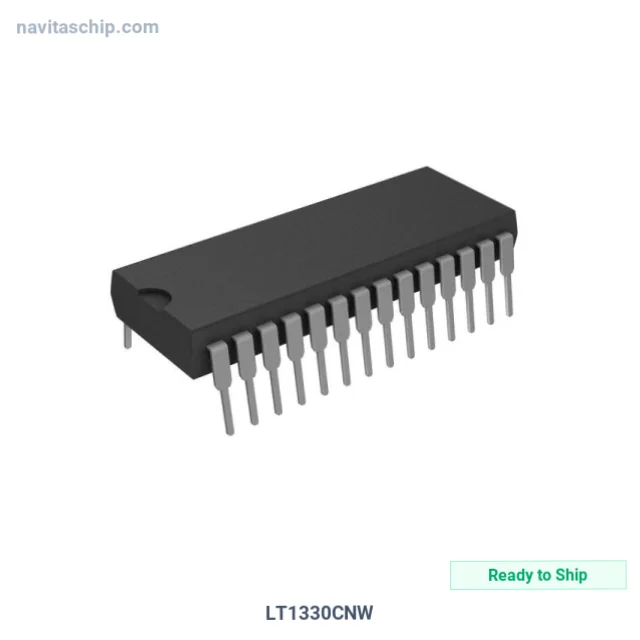

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1330CNW |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-149672 |
| Description | IC TXRX 5V RS232 W/3VLOGIC 28DIP |
| Spec | 28-DIP (0.600", 15.24mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 3/5 |
| Duplex | Full |
| Receiver Hysteresis | 400 mV |
| Data Rate | 250KBd |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1330CNW Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1330CNW is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver 5V Supply RS-232W/3vlogic in 28-Pin DIP Package, housed in a compact 28-PDIP package, with 4.5V ~ 5.5V supply voltage. Originally developed by Linear Technology, this component continues to be fully supported.
Don't let hard-to-find LVDS and Ethernet PHY transceivers with original date codes and traceability slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 28-DIP (0.600", 15.24mm)
- Device Package: 28-PDIP
- RoHS Compliant
Applications
Designed for:
- embedded systems
- industrial 4.0 smart manufacturing distributed I/O
- smart grid metering and substation communication
- RS-485 multipoint differential transceivers for harsh environments
Why Choose NavitasChip for LT1330CNW?
NavitasChip offers competitive market pricing for the LT1330CNW and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for LT1330CNW to optimize delivery time and customs clearance.
LT1330CNW - Get instant quote online.
