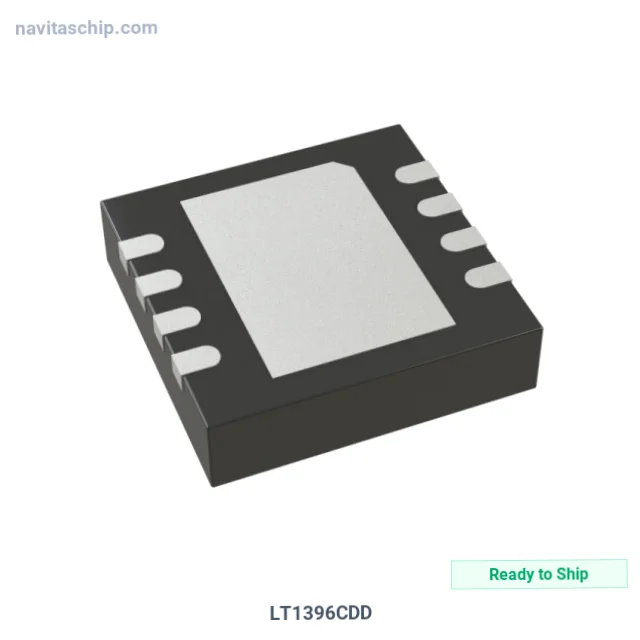

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1396CDD |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-559734 |
| Description | IC AMP CURRNT FEEDBCK DUAL 8DFN |
| Spec | 8-WFDFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Amplifier Type | Current Feedback |
| Number of Circuits | 2 |
| Slew Rate | 800V/µs |
| -3db Bandwidth | 400 MHz |
| Current - Input Bias | 10 µA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 4.6mA (x2 Channels) |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1396CDD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1396CDD is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Amplifier Currnt Feedbck Dual in 8-Pin DFN Package, housed in a compact 8-DFN (3x3) package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-DFN (3x3)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
