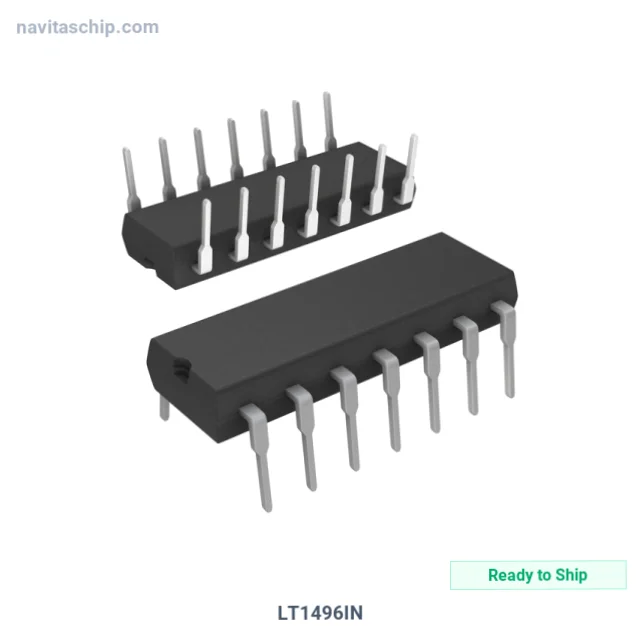

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1496IN |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-280766 |
| Description | IC OPAMP GP 2.7KHZ RRO 14DIP |
| Spec | 14-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.001V/µs |
| Gain Bandwidth Product | 2.7 kHz |
| Current - Input Bias | 250 pA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 1µA (x4 Channels) |
| Current - Output / Channel | 1.5 mA |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1496IN Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1496IN is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier General Purpose 2.7kHz Rro in 14-Pin DIP Package, housed in a compact 14-PDIP package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 14-DIP (0.300", 7.62mm)
- Device Package: 14-PDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
