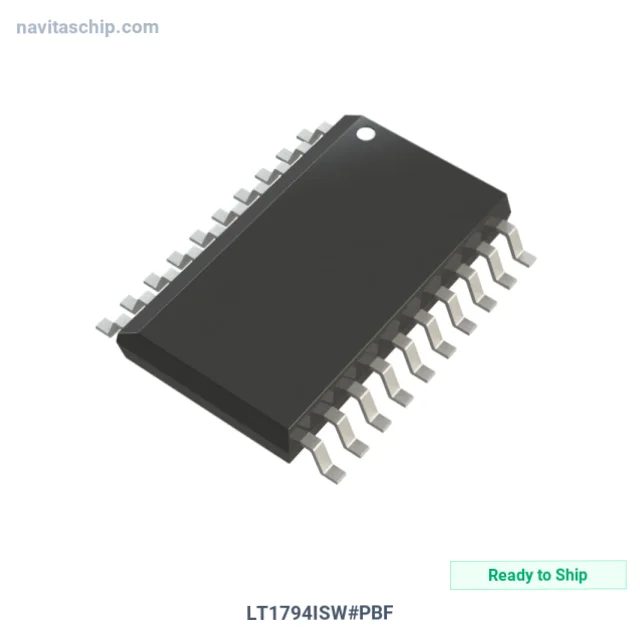

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT1794ISW#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-891617 |
| Description | IC TRANSCEIVER 2/0 20SO |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Type | Driver |
| Protocol | xDSL |
| Number of Drivers/Receivers | 2/0 |
| Voltage - Supply | 18V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT1794ISW#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT1794ISW#PBF is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver 2/0 20so, housed in a compact 20-SO package, with 18V supply voltage. Originally developed by Linear Technology.
Key Technical Specifications
- Supply Voltage: 18V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SO
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
