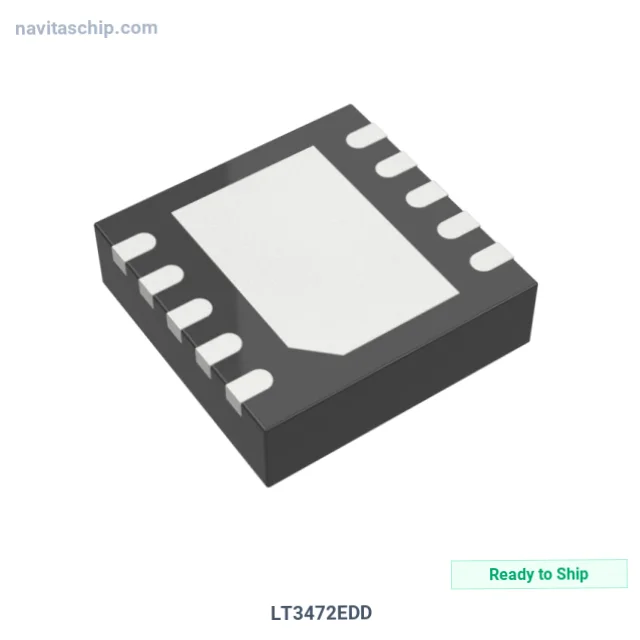

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT3472EDD |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-695087 |
| Description | IC REG BST CUK ADJ 50MA DL 10DFN |
| Spec | 10-WFDFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive and Negative (Dual Rail) |
| Topology | Boost, Cuk |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.2V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | ±2.2V |
| Voltage - Output (Max) | ±34V |
| Current - Output | 50mA |
| Frequency - Switching | 1.1MHz |
| Synchronous Rectifier | No |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-DFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT3472EDD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT3472EDD is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc. (ADI). Integrated Circuit Regulator Bst Cuk Adjustable 50ma Dual in 10-Pin DFN Package, housed in a compact 10-DFN (3x3) package. Originally developed by Linear Technology, this component continues to be fully supported.
Facing switching regulator EOL and obsolescence disrupting production continuity? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Adjustable
- Mounting: Surface Mount
- Package: 10-WFDFN Exposed Pad
- Device Package: 10-DFN (3x3)
- RoHS Compliant
Applications
Designed for:
- embedded systems
- buck converter and step-down DC-DC conversion
- non-synchronous switching for cost-sensitive designs
- multi-output and multi-rail power conversion architectures
Why Choose NavitasChip for LT3472EDD?
NavitasChip offers cost-saving procurement for the LT3472EDD and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for LT3472EDD, serving customers in Indonesia, Philippines, and worldwide.
LT3472EDD - Contact our sales team.
