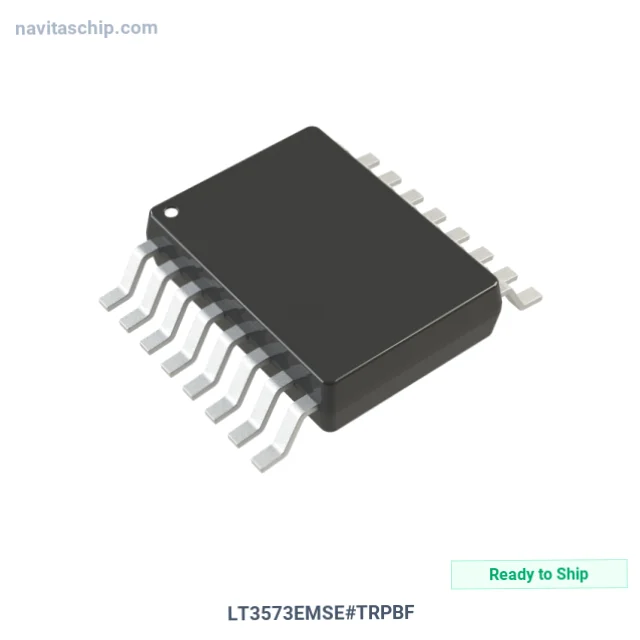

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT3573EMSE#TRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1985689 |
| Description | IC REG FLYBACK 1.25A 16MSOP |
| Spec | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable |
| Topology | Flyback |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 40V |
| Current - Output | 1.25A |
| Frequency - Switching | 40kHz ~ 1MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-MSOP-EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT3573EMSE#TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT3573EMSE#TRPBF is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc. (ADI). Integrated Circuit Regulator Flyback 1.25a in 16-Pin MSOP Package, housed in a compact 16-MSOP-EP package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Device Package: 16-MSOP-EP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
