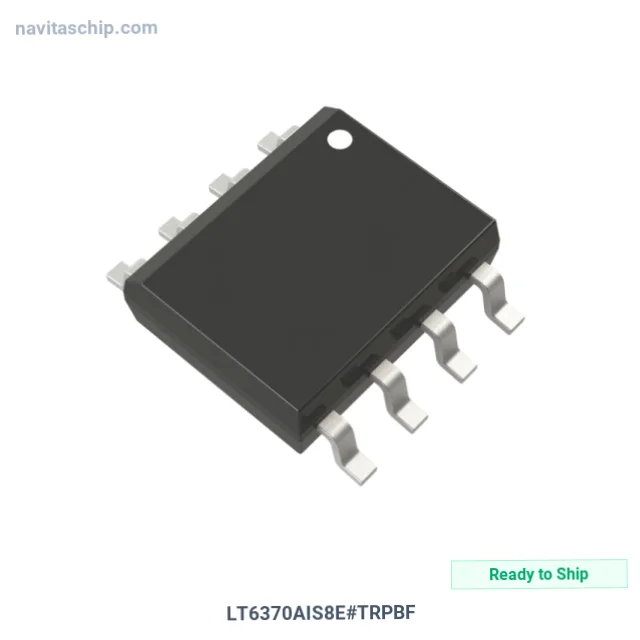

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LT6370AIS8E#TRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-10816282 |
| Description | IC INST AMP 1 CIRCUIT 8SOIC |
| Spec | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 11V/µs |
| -3db Bandwidth | 3.1 MHz |
| Current - Input Bias | 100 pA |
| Voltage - Input Offset | 9 µV |
| Current - Supply | 2.65mA |
| Current - Output / Channel | 55 mA |
| Voltage - Supply Span (Min) | 4.75 V |
| Voltage - Supply Span (Max) | 35 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC-EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LT6370AIS8E#TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LT6370AIS8E#TRPBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Inst Amplifier 1 Circuit in 8-Pin SOIC Package, housed in a compact 8-SOIC-EP package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Device Package: 8-SOIC-EP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
