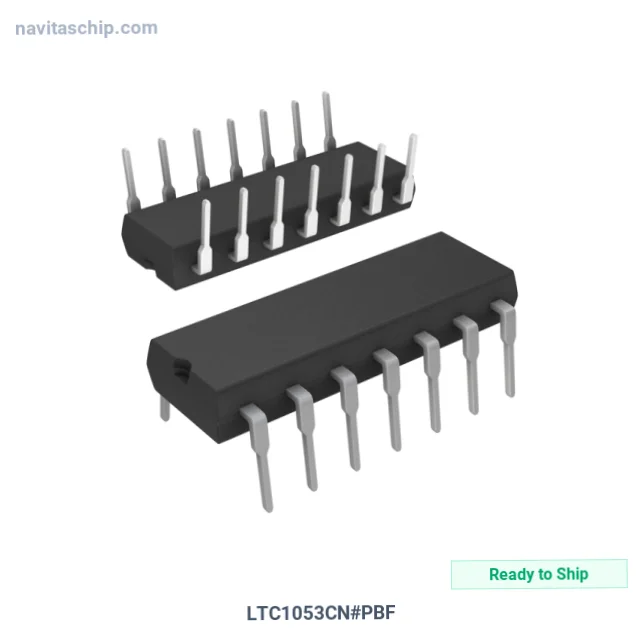

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC1053CN#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-891819 |
| Description | IC OPAMP ZERO-DRIFT 4 CIRC 14DIP |
| Spec | 14-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Chopper (Zero-Drift) |
| Number of Circuits | 4 |
| Slew Rate | 4V/µs |
| Gain Bandwidth Product | 2.5 MHz |
| Current - Input Bias | 15 pA |
| Voltage - Input Offset | 0.5 µV |
| Current - Supply | 1mA (x4 Channels) |
| Voltage - Supply Span (Min) | 4.75 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC1053CN#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC1053CN#PBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Zero-Drift 4 Circ in 14-Pin DIP Package, housed in a compact 14-PDIP package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 14-DIP (0.300", 7.62mm)
- Device Package: 14-PDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
