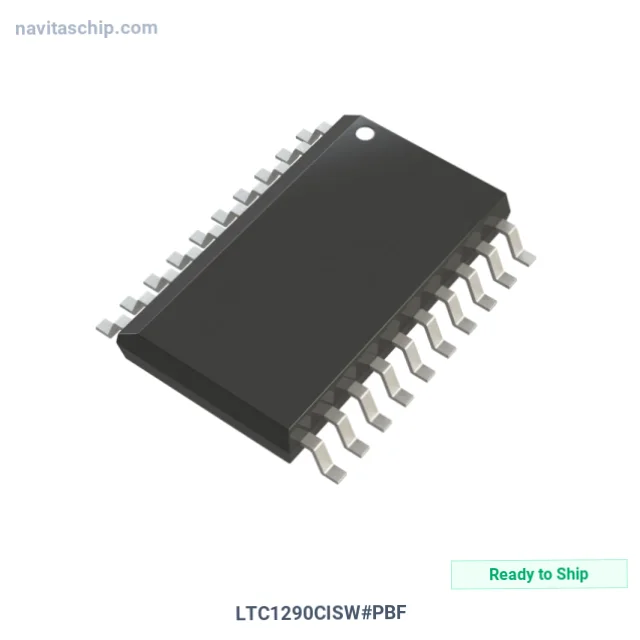

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC1290CISW#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-889825 |
| Description | IC DAS/ADC 12BIT 50K 20SOIC |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 20-SO |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC1290CISW#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC1290CISW#PBF is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Das/analog-To-Digital Converter 12bit 50k in 20-Pin SOIC Package, housed in a compact 20-SO package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SO
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
