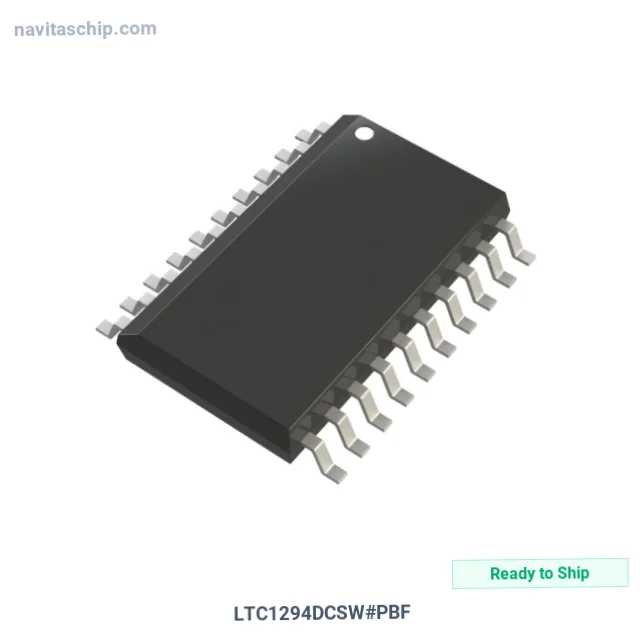

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC1294DCSW#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-891276 |
| Description | IC DAS/ADC 12BIT 46.5K 20SOIC |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC1294DCSW#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC1294DCSW#PBF is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Das/analog-To-Digital Converter 12bit 46.5k in 20-Pin SOIC Package, housed in a compact 20-SO package, with ±5V, 5V supply voltage. Originally developed by Linear Technology, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Don't let EOL audio codec and special-purpose ADC obsolescence disrupting production continuity slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: ±5V, 5V
- Channels: 8
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SO
- RoHS Compliant
Applications
Perfect for:
- professional recording studio and broadcast audio mixing equipment
- smart speaker, soundbar and home theater audio processing
- industrial public address and paging audio distribution systems
- power and energy metering for smart grid and submetering applications
Why Choose NavitasChip for LTC1294DCSW#PBF?
NavitasChip offers cost-saving procurement for the LTC1294DCSW#PBF and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for LTC1294DCSW#PBF with regional warehouse support.
LTC1294DCSW#PBF - Contact our sales team.
