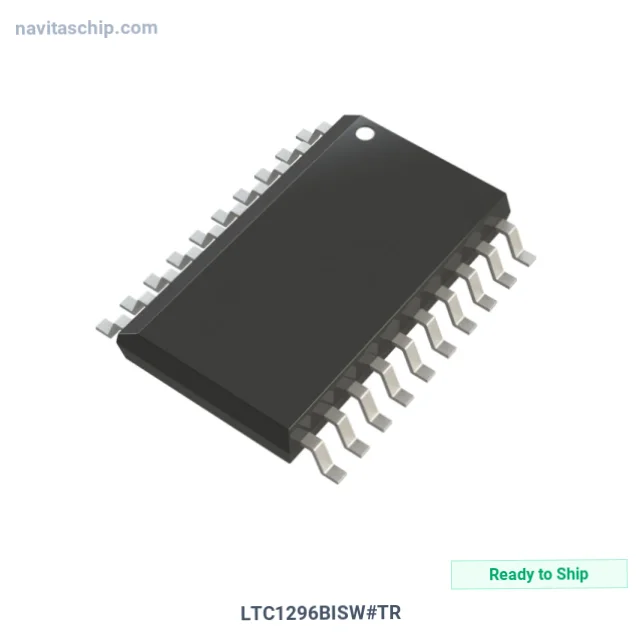

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC1296BISW#TR |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-693763 |
| Description | IC DATA ACQ SYS 12BIT 5V 20SOIC |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC1296BISW#TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC1296BISW#TR is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Data Acq Sys 12bit 5V Supply in 20-Pin SOIC Package, housed in a compact 20-SO package, with ±5V, 5V supply voltage. Originally developed by Linear Technology, this component continues to be fully supported. Supplied in Tape and Reel packaging for automated assembly.
Struggling with discontinued AD2S resolver-to-digital and AMC1 isolated ADC families requiring drop-in replacements? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Supply Voltage: ±5V, 5V
- Channels: 8
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SO
- RoHS Compliant
Applications
Ideal solution for:
- in-vehicle infotainment audio systems and aftermarket head units
- digital musical instruments and electronic music production equipment
- power and energy metering for smart grid and submetering applications
Why Choose NavitasChip for LTC1296BISW#TR?
NavitasChip offers supply gap bridging when factory lead times exceed 50 weeks for the LTC1296BISW#TR and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Fast LTC1296BISW#TR delivery to New Zealand and Australia via DHL, FedEx, and UPS.
LTC1296BISW#TR - Upload your BOM for fast pricing.
