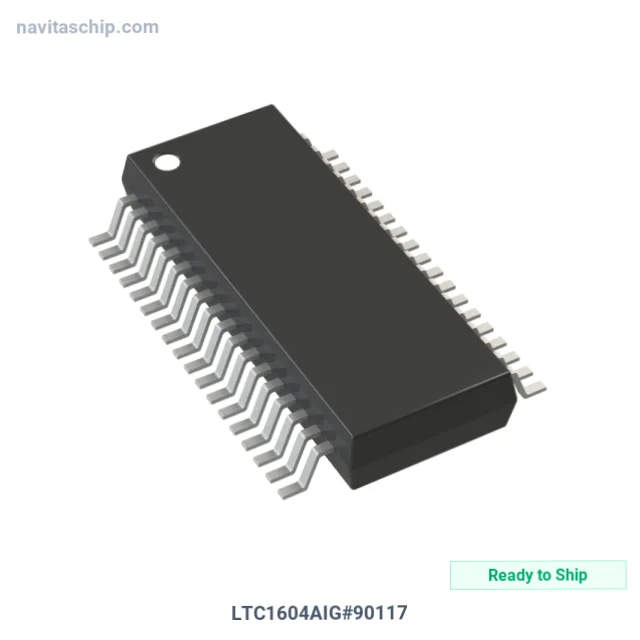

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC1604AIG#90117 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-16891583 |
| Description | LTC1604AIG#90117 |
| Spec | 36-SSOP (0.209", 5.30mm Width) |
| Package | Bulk |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 333k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | ±4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 36-SSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC1604AIG#90117 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Ltc1604aig#90117, housed in a compact 36-SSOP package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 36-SSOP (0.209", 5.30mm Width)
- Device Package: 36-SSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
