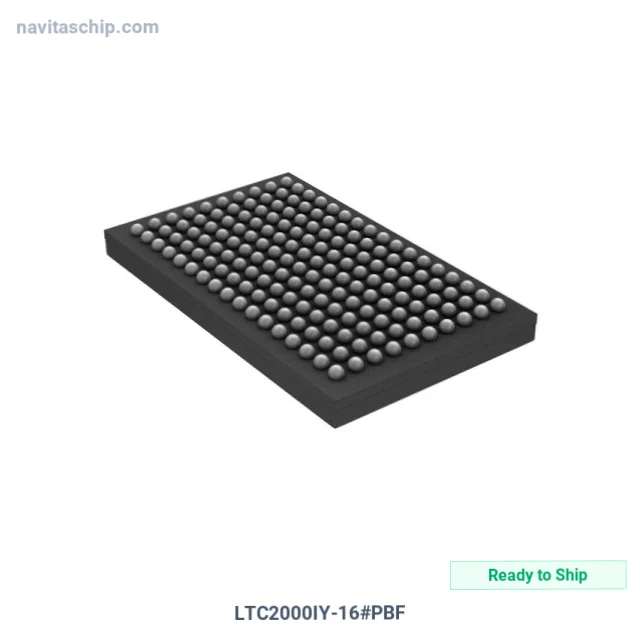

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC2000IY-16#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-4964716 |
| Description | IC DAC 16BIT A-OUT 170BGA |
| Spec | 170-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 2.2ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.8V ~ 1.92V, 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 1.8V ~ 1.92V, 3.135V ~ 3.465V |
| INL/DNL (LSB) | ±1, ±0.5 |
| Architecture | Current Steering |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 170-BGA (15x9) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC2000IY-16#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC2000IY-16#PBF is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 16bit A-Out in 170-Pin BGA Package, housed in a compact 170-BGA (15x9) package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 170-LFBGA
- Device Package: 170-BGA (15x9)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
