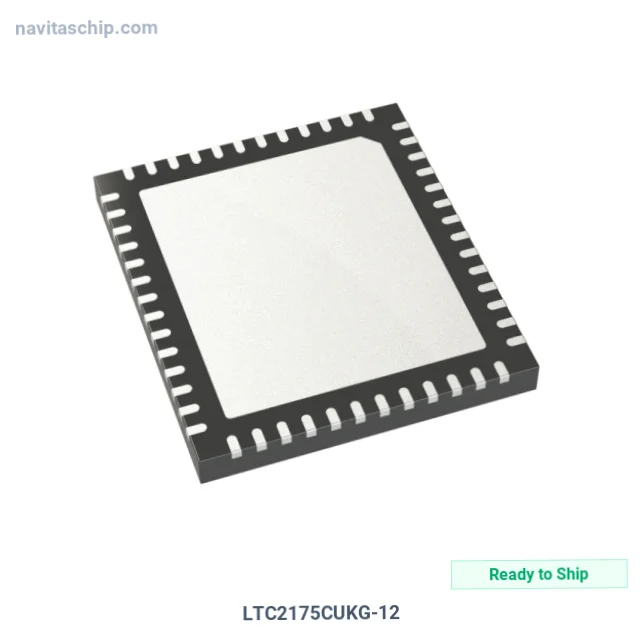

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC2175CUKG-12 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-9180117 |
| Description | IC ADC 12BIT PIPELINED 52QFN |
| Spec | 52-WFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 4 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 52-QFN (7x8) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC2175CUKG-12 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC2175CUKG-12 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit Pipelined in 52-Pin QFN Package, housed in a compact 52-QFN (7x8) package. Originally developed by Linear Technology, this component continues to be fully supported.
Facing discontinued multi-channel ADC families requiring drop-in pin-compatible replacements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 52-WFQFN Exposed Pad
- Device Package: 52-QFN (7x8)
Applications
Widely adopted for:
- professional equipment
- flash and subranging ADC for ultra-high-speed waveform digitization
- 8-bit and 10-bit cost-optimized ADC for general-purpose conversion
- portable battery-powered handheld instrumentation and field test equipment
Why Choose NavitasChip for LTC2175CUKG-12?
NavitasChip offers global surplus sourcing network for the LTC2175CUKG-12 and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
LTC2175CUKG-12 available for international procurement with multiple shipping origin options.
LTC2175CUKG-12 - Check our competitive price now.
