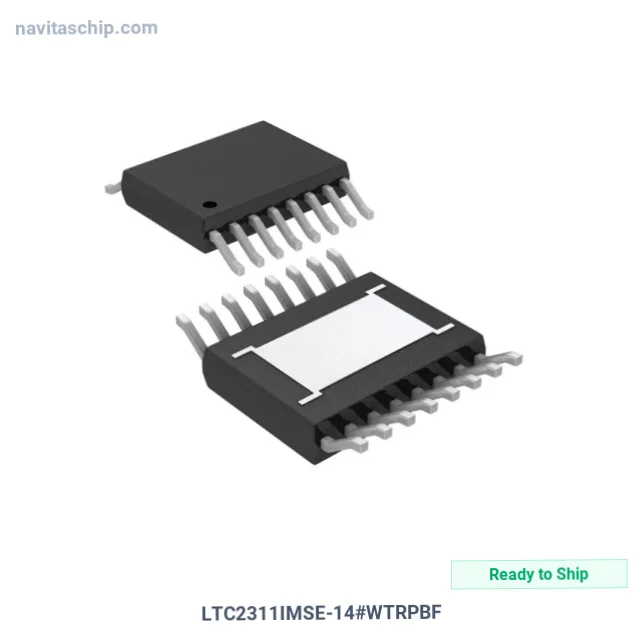

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC2311IMSE-14#WTRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-16651499 |
| Description | 14-B + SIGN, 5MSPS DIFF IN ADC W |
| Spec | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 16-MSOP-EP |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC2311IMSE-14#WTRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC2311IMSE-14#WTRPBF is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). 14-B + Sign, housed in a compact 16-MSOP-EP package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Device Package: 16-MSOP-EP
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
