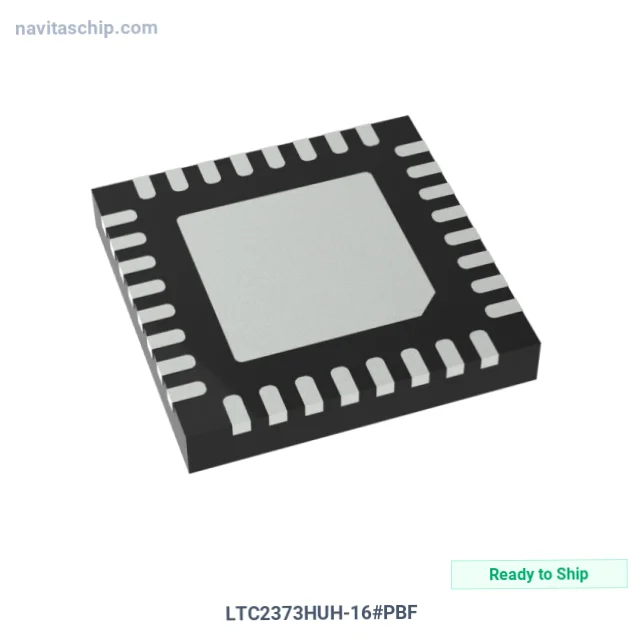

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC2373HUH-16#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-5297598 |
| Description | IC ADC 16BIT SAR 32QFN |
| Spec | 32-WFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 32-QFN (5x5) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC2373HUH-16#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC2373HUH-16#PBF is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 16bit Sar in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package. Originally developed by Linear Technology.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 32-WFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
