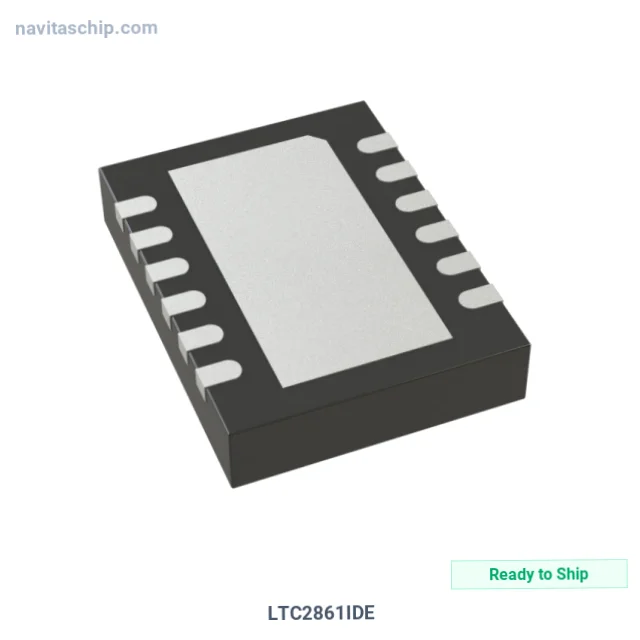

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC2861IDE |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-5702261 |
| Description | IC TXRX RS485 20MBPS 12-DFN |
| Spec | 12-WFDFN Exposed Pad |
| Package | Bag |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Bag |
| Product Status | Discontinued at |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full |
| Receiver Hysteresis | 25 mV |
| Data Rate | 20Mbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-DFN (4x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC2861IDE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC2861IDE is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver RS-485 20mbps in 12-Pin DFN Package, housed in a compact 12-DFN (4x3) package, with 4.5V ~ 5.5V supply voltage. Originally developed by Linear Technology.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 12-WFDFN Exposed Pad
- Device Package: 12-DFN (4x3)
- RoHS Compliant
Packaging: factory Bag or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
