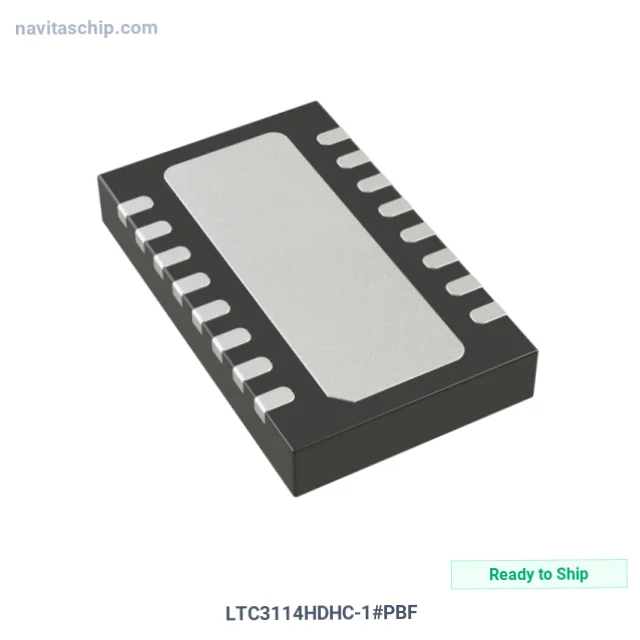

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC3114HDHC-1#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-4840760 |
| Description | IC REG BUCK BOOST ADJ 1A 16DFN |
| Spec | 16-WFDFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.2V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Voltage - Output (Max) | 40V |
| Current - Output | 1A |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-DFN (5x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC3114HDHC-1#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC3114HDHC-1#PBF is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc. (ADI). Integrated Circuit Regulator Buck Boost Adjustable 1a in 16-Pin DFN Package, housed in a compact 16-DFN (5x3) package. Originally developed by Linear Technology, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Don't let allocation constraints slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 16-WFDFN Exposed Pad
- Device Package: 16-DFN (5x3)
- RoHS Compliant
