| Manufacturer Product Number | LTC3604IMSE#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2216351 |

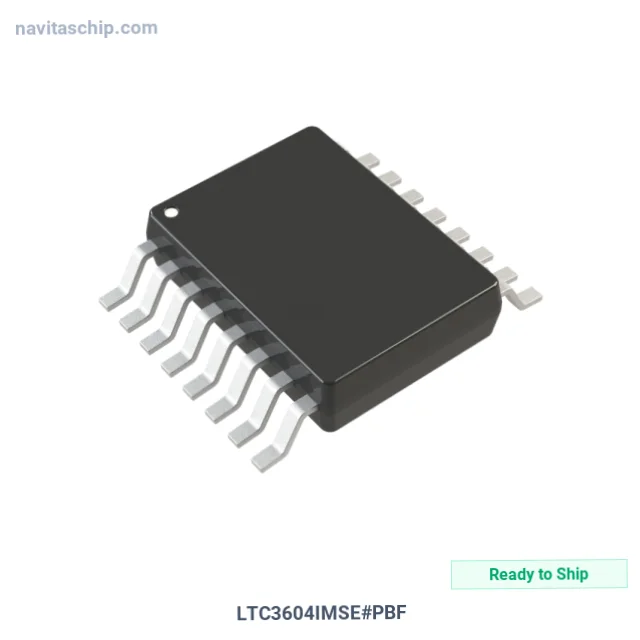

| Description | IC REG BUCK ADJ 2.5A 16MSOP |
| Spec | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 14.52V |
| Current - Output | 2.5A |
| Frequency - Switching | 2MHz ~ 4MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-MSOP-EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC3604IMSE#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC3604IMSE#PBF is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc. (ADI). Integrated Circuit Regulator Buck Adjustable 2.5a in 16-Pin MSOP Package, housed in a compact 16-MSOP-EP package. Originally developed by Linear Technology, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Facing end-of-life buck converter transition without board redesign? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Device Package: 16-MSOP-EP
- RoHS Compliant
Applications
Designed for:
- non-synchronous switching for cost-sensitive designs
- inverting converter and negative voltage rail generation
- flyback isolated DC-DC conversion for off-line power
- industrial automation and process control power rails
- portable battery-powered handheld equipment
Why Choose NavitasChip for LTC3604IMSE#PBF?
NavitasChip offers cost-saving procurement for the LTC3604IMSE#PBF and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
LTC3604IMSE#PBF available for international procurement with multiple shipping origin options.
LTC3604IMSE#PBF - Check our competitive price now.
