| Manufacturer Product Number | LTC3604IUD#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2216353 |

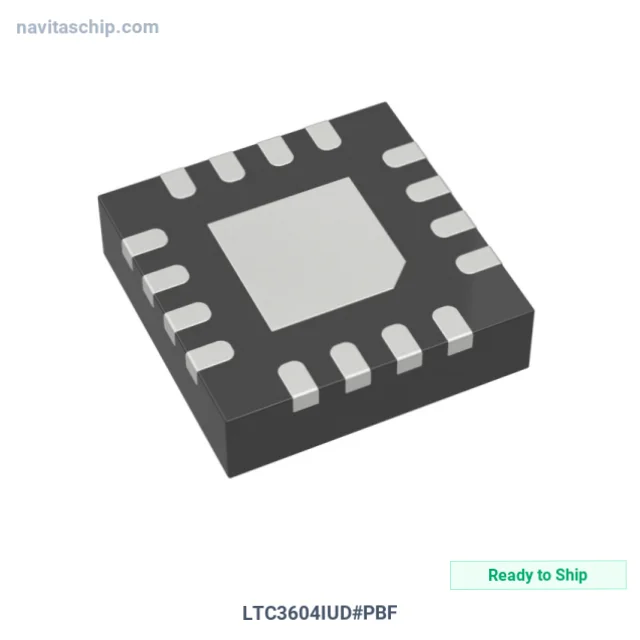

| Description | IC REG BUCK ADJ 2.5A 16QFN |
| Spec | 16-WFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 14.52V |
| Current - Output | 2.5A |
| Frequency - Switching | 2MHz ~ 4MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC3604IUD#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC3604IUD#PBF is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc. (ADI). Integrated Circuit Regulator Buck Adjustable 2.5a in 16-Pin QFN Package, housed in a compact 16-QFN (3x3) package. Originally developed by Linear Technology, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
In today's market, annual BOM cost reduction pressure can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 16-WFQFN Exposed Pad
- Device Package: 16-QFN (3x3)
- RoHS Compliant
Applications
Essential component for:
- boost converter and step-up power conversion
- flyback isolated DC-DC conversion for off-line power
- portable battery-powered handheld equipment
Why Choose NavitasChip for LTC3604IUD#PBF?
NavitasChip offers cost-effective alternative to authorized distributors for the LTC3604IUD#PBF and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
