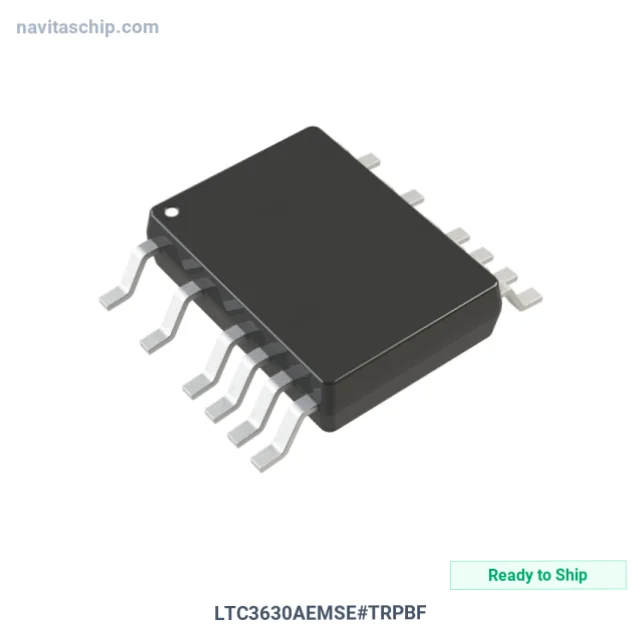

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC3630AEMSE#TRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-4271703 |
| Description | IC REG BUCK ADJ 500MA 16MSOP |
| Spec | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck |
| Output Type | Adjustable (Programmable) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 76V |
| Voltage - Output (Min/Fixed) | 0.8V (1.8V, 3.3V, 5V) |
| Voltage - Output (Max) | 76V |
| Current - Output | 500mA |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-MSOP-EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC3630AEMSE#TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC3630AEMSE#TRPBF is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc. (ADI). Integrated Circuit Regulator Buck Adjustable 500ma in 16-Pin MSOP Package, housed in a compact 16-MSOP-EP package. Originally developed by Linear Technology, this component continues to be fully supported. This is the Lead-Free (Pb-Free) version, fully RoHS compliant.
Facing excess inventory tying up working capital? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Adjustable (Programmable)
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad
- Device Package: 16-MSOP-EP
- RoHS Compliant
Applications
Ideal solution for:
- industrial automation
- boost converter and step-up power conversion
- wide input voltage range from battery cells to industrial bus rails
Why Choose NavitasChip for LTC3630AEMSE#TRPBF?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the LTC3630AEMSE#TRPBF and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for LTC3630AEMSE#TRPBF with distribution hubs in Hong Kong, Singapore, and Shenzhen.
LTC3630AEMSE#TRPBF - Request a quote today.
