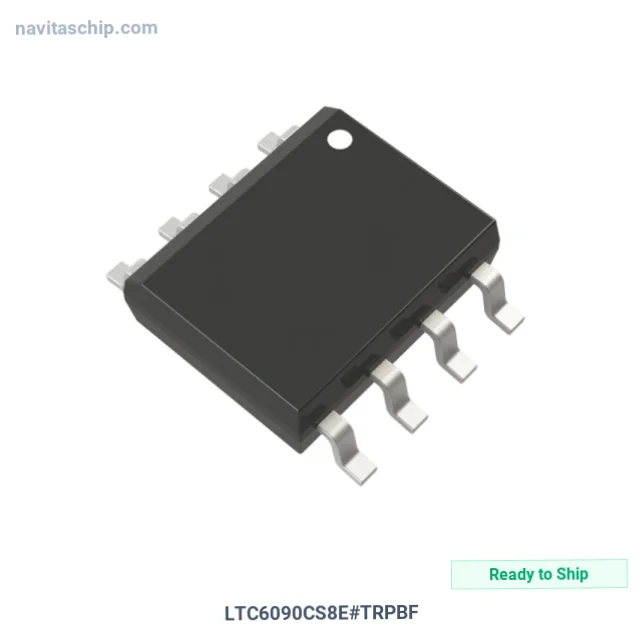

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC6090CS8E#TRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3838542 |
| Description | IC OPAMP GP 1 CIRCUIT 8SOIC |
| Spec | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 21V/µs |
| Gain Bandwidth Product | 12 MHz |
| Current - Input Bias | 3 pA |
| Voltage - Input Offset | 330 µV |
| Current - Supply | 2.8mA |
| Voltage - Supply Span (Min) | 9.5 V |
| Voltage - Supply Span (Max) | 140 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC-EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC6090CS8E#TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC6090CS8E#TRPBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier General Purpose 1 Circuit in 8-Pin SOIC Package, housed in a compact 8-SOIC-EP package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Device Package: 8-SOIC-EP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
