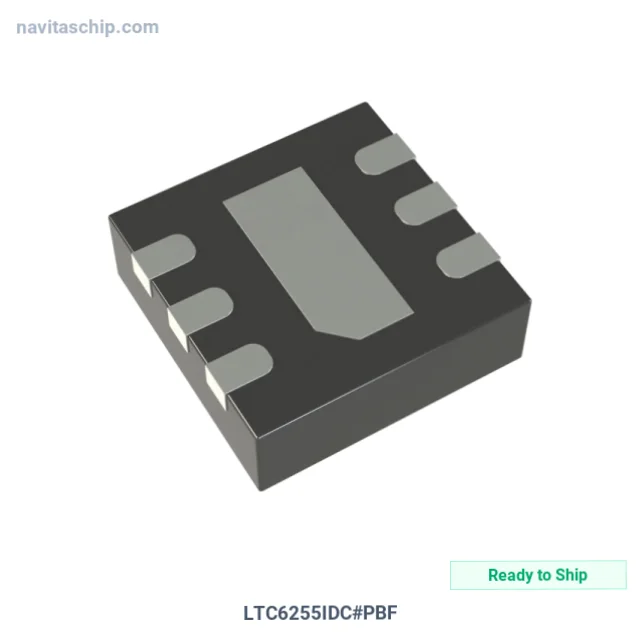

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC6255IDC#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-5804155 |
| Description | IC OPAMP GP 1 CIRCUIT 6DFN |
| Spec | 6-WFDFN Exposed Pad |
| Package | Strip |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Strip |
| Product Status | Discontinued at |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.8V/µs |
| Gain Bandwidth Product | 6.5 MHz |
| -3db Bandwidth | 4.5 MHz |
| Current - Input Bias | 5 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 65µA |
| Current - Output / Channel | 35 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC6255IDC#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC6255IDC#PBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier General Purpose 1 Circuit in 6-Pin DFN Package, housed in a compact 6-DFN (2x2) package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 6-WFDFN Exposed Pad
- Device Package: 6-DFN (2x2)
Packaging: factory Strip or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
