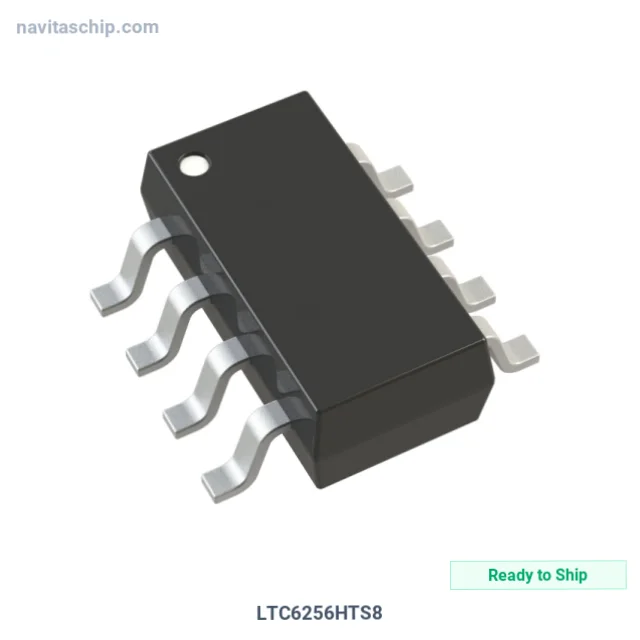

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC6256HTS8 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-9181179 |
| Description | IC OPAMP GP 2 CIRCUIT TSOT23-8 |
| Spec | SOT-23-8 Thin, TSOT-23-8 |
| Package | Tube |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.8V/µs |
| Gain Bandwidth Product | 6.5 MHz |
| -3db Bandwidth | 4.5 MHz |
| Current - Input Bias | 5 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 65µA (x2 Channels) |
| Current - Output / Channel | 35 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-8 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC6256HTS8 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier General Purpose 2 Circuit Tsot23-8, housed in a compact TSOT-23-8 package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: SOT-23-8 Thin, TSOT-23-8
- Device Package: TSOT-23-8
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
