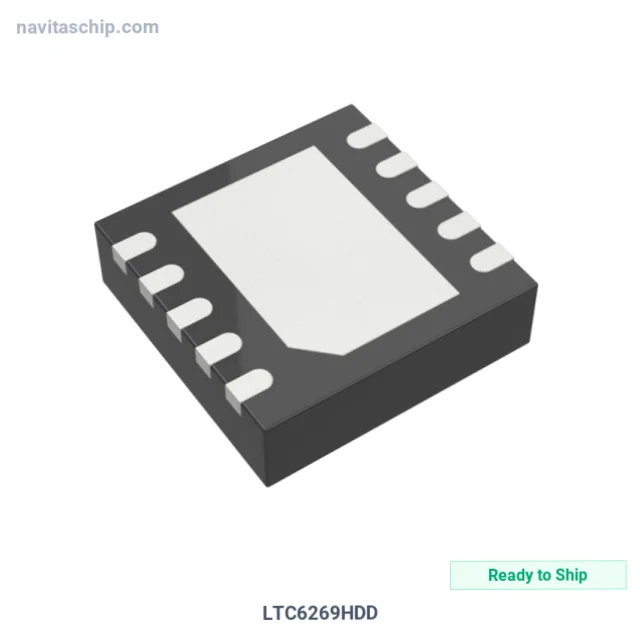

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC6269HDD |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-9181195 |
| Description | IC OPAMP JFET 2 CIRCUIT 10DFN |
| Spec | 10-WFDFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | J-FET |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 400V/µs |
| Gain Bandwidth Product | 500 MHz |
| -3db Bandwidth | 350 MHz |
| Current - Input Bias | 0.003 pA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 16.5mA (x2 Channels) |
| Current - Output / Channel | 90 mA |
| Voltage - Supply Span (Min) | 3.1 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-DFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC6269HDD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC6269HDD is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier JFET 2 Circuit in 10-Pin DFN Package, housed in a compact 10-DFN (3x3) package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 10-WFDFN Exposed Pad
- Device Package: 10-DFN (3x3)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
