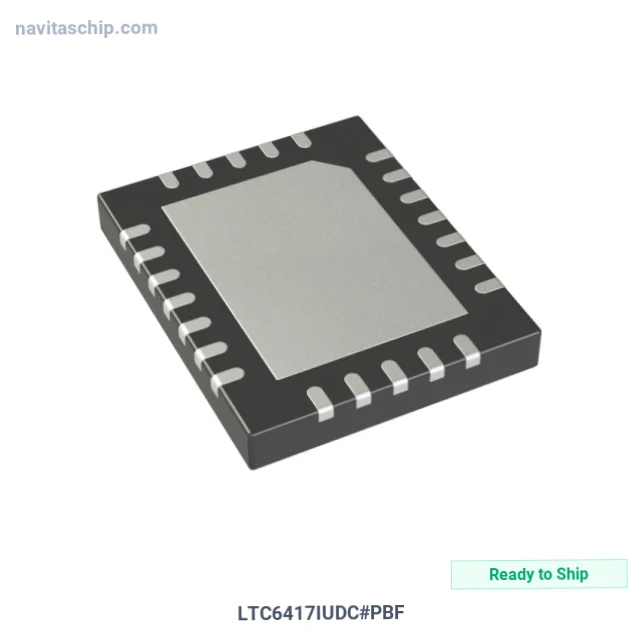

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC6417IUDC#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3507415 |
| Description | IC BUFFER 1 CIRCUIT 20QFN |
| Spec | 20-WFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Buffer |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | 10000V/µs |
| -3db Bandwidth | 1.6 GHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 123mA |
| Voltage - Supply Span (Min) | 4.75 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QFN (3x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC6417IUDC#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC6417IUDC#PBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Buffer 1 Circuit in 20-Pin QFN Package, housed in a compact 20-QFN (3x4) package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 20-WFQFN Exposed Pad
- Device Package: 20-QFN (3x4)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
