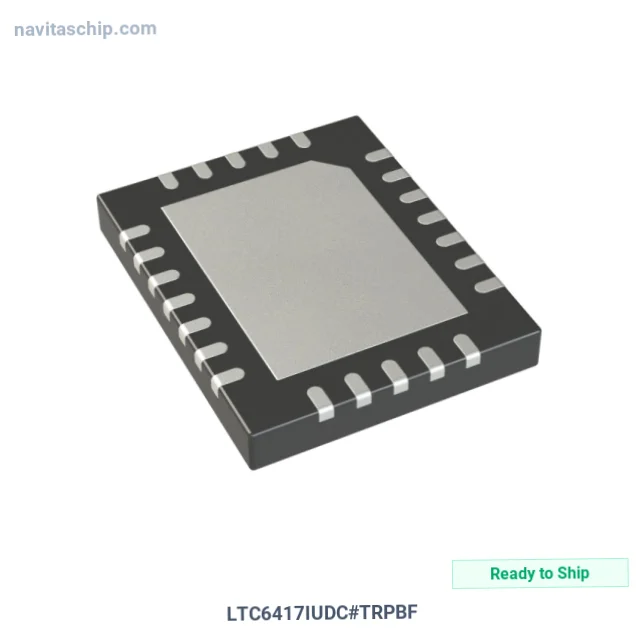

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTC6417IUDC#TRPBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3507417 |
| Description | IC BUFFER 1 CIRCUIT 20QFN |
| Spec | 20-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Buffer |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | 10000V/µs |
| -3db Bandwidth | 1.6 GHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 123mA |
| Voltage - Supply Span (Min) | 4.75 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QFN (3x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTC6417IUDC#TRPBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTC6417IUDC#TRPBF is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Buffer 1 Circuit in 20-Pin QFN Package, housed in a compact 20-QFN (3x4) package. Originally developed by Linear Technology.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 20-WFQFN Exposed Pad
- Device Package: 20-QFN (3x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
