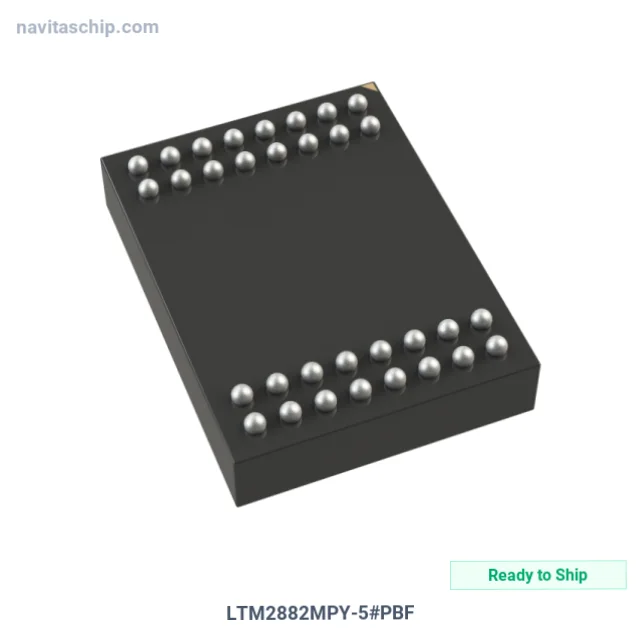

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LTM2882MPY-5#PBF |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3024946 |
| Description | IC TXRX UMOD DUAL RS232 32-BGA |
| Spec | 32-BBGA Module |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Discontinued at |
| Type | Transceiver, Isolated |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Half |
| Receiver Hysteresis | 150 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-BGA (15x11.25) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. LTM2882MPY-5#PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LTM2882MPY-5#PBF is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver Umod Dual RS-232 in 32-Pin BGA Package, housed in a compact 32-BGA (15x11.25) package, with 4.5V ~ 5.5V supply voltage. Originally developed by Linear Technology.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -55°C ~ 105°C
- Mounting: Surface Mount
- Package: 32-BBGA Module
- Device Package: 32-BGA (15x11.25)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
