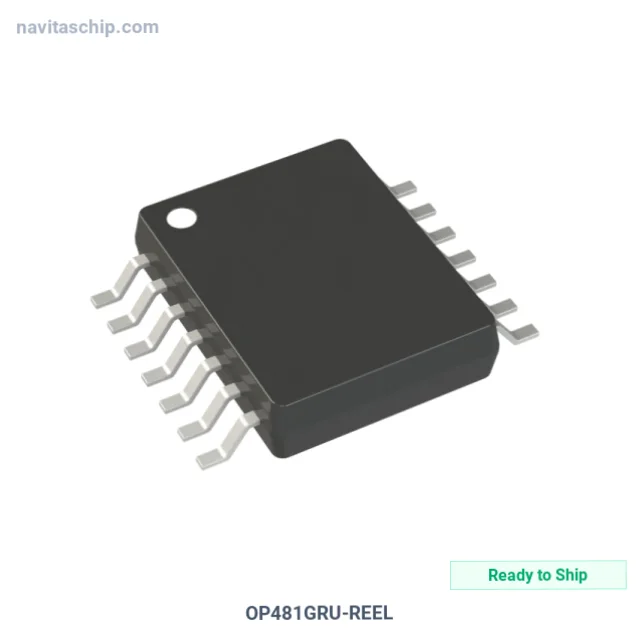

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OP481GRU-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11536319 |
| Description | IC OPAMP GP R-R 105KHZ 14TSSOP |
| Spec | 14-TSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.028V/µs |
| Gain Bandwidth Product | 105 kHz |
| Current - Input Bias | 3 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 3.3µA (x4 Channels) |
| Current - Output / Channel | 12 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. OP481GRU-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OP481GRU-REEL is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Gp R-R 105kHz in 14-Pin TSSOP Package, housed in a compact 14-TSSOP package. Tape and Reel packaging available.
Facing legacy Analog Devices and Texas Instruments op amp sourcing for fielded industrial instrumentation? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 14-TSSOP (0.173", 4.40mm Width)
- Device Package: 14-TSSOP
Applications
Ideal solution for:
- general-purpose operational amplifier for analog signal buffering, amplification and conditioning
- high-speed op amp with wide gain-bandwidth product for active filter and ADC driver stages
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
- JFET-input op amp alternative for Analog Devices AD8642, AD8625 and AD795 low-bias-current designs
- analog signal chain buffer between sensor front-ends and downstream ADC inputs for data acquisition
Why Choose NavitasChip for OP481GRU-REEL?
NavitasChip offers global surplus sourcing network for the OP481GRU-REEL and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Need OP481GRU-REEL urgently? We maintain buffer stock across multiple global locations.
OP481GRU-REEL - Contact our sales team.
